Mounting adapter on short taper spindle noses DIN55026.
Thank you for visiting our website. Your personal privacy is absolutely respected and protected by the website. To help you understand how the website collects, uses and protects your personal information, be sure to read the websitePrivacy Policy. Thank you!

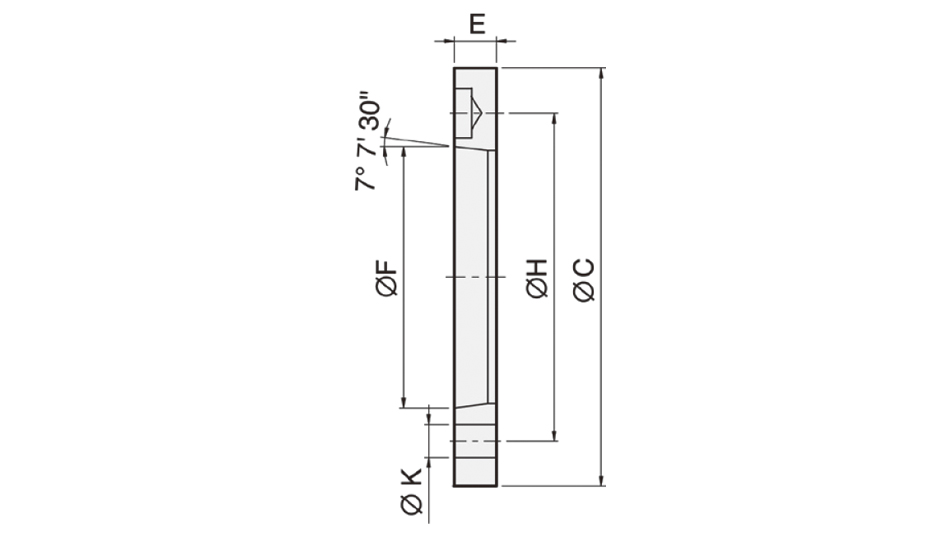

DIM Model | Spindle Nose | C | F | H | K | E | Matching Chuck |
---|---|---|---|---|---|---|---|
N-205A4 | A4 | 110 | 63.513 | 82.55 | 3-11 | 15 | N-205 |
NT-205A4 | A4 | 110 | 63.513 | 82.55 | 4-11 | 15 | NT-205 |
N-206A5 | A5 | 140 | 82.563 | 104.78 | 6-11 | 15 | N-206, NB-306, NL-06, V-206, DR-06 |
NT-206A5 | A5 | 140 | 82.563 | 104.78 | 6-11 | 15 | NT-206, VT-206 |
NIT-206A5 | A5 | 140 | 82.563 | 104.78 | 4-11 | 15 | NIT-206 |
N-208A6 | A6 | 170 | 106.375 | 133.35 | 6-13 | 17 | N-208, NB-208, NL-08, V-208, DR-08 |
NT-208A6 | A6 | 170 | 106.375 | 133.35 | 6-13 | 17 | NT-208, VT-208 |
NIT-208A6 | A6 | 170 | 106.375 | 133.35 | 4-13 | 17 | NIT-208 |
NHT-208A6 | A6 | 170 | 106.375 | 133.35 | 6-13 | 17 | NHT-208 |
N-210A8 | A8 | 220 | 139.719 | 171.45 | 6-17 | 18 | N-210, N-212, NB-210, NL-10, V-210, V-212, NB-310, V-212R, BL-12 |
NT-210A8 | A8 | 220 | 139.719 | 171.45 | 6-17 | 18 | NT-210, NT-212, VT-210, VT-212 |
NIT-210A8 | A8 | 220 | 139.719 | 171.45 | 4-17 | 18 | NIT-210, NIT-212, VIT-212, VIR-212R |
N-215A11 | A11 | 300 | 196.869 | 235 | 6-21 | 22 | N-215, N-218, NB-212, V-215, V-218, V-215R, V-218R |
NT-215A11 | A11 | 300 | 196.869 | 235 | 6-21 | 22 | NT-215, VT-215, NT-218 |
NIT-215A11 | A11 | 300 | 196.869 | 235 | 4-21 | 22 | NIT-215, VIT-218, NIT-21 |
V-224A15 | A15 | 380 | 285.775 | 330.2 | 6-25 | 27 | N-220, V-221R, V-224R, V232R, V-232RD, NB-215, NB-218 |
VIT-224A15 | A15 | 380 | 285.775 | 330.2 | 8-25 | 27 | VIT-224R, VIT-232R |
N-224A20 | A20 | 520 | 412.775 | 463.6 | 6-26 | 25 | N-224, N-232, V-240, V-250 |
VIT-240A20 | A20 | 520 | 412.775 | 463.8 | 6-26 | 25 | NIT-224, VIT-240, VIT-250 |
