Suitable for power chuck.
Thank you for visiting our website. Your personal privacy is absolutely respected and protected by the website. To help you understand how the website collects, uses and protects your personal information, be sure to read the websitePrivacy Policy. Thank you!

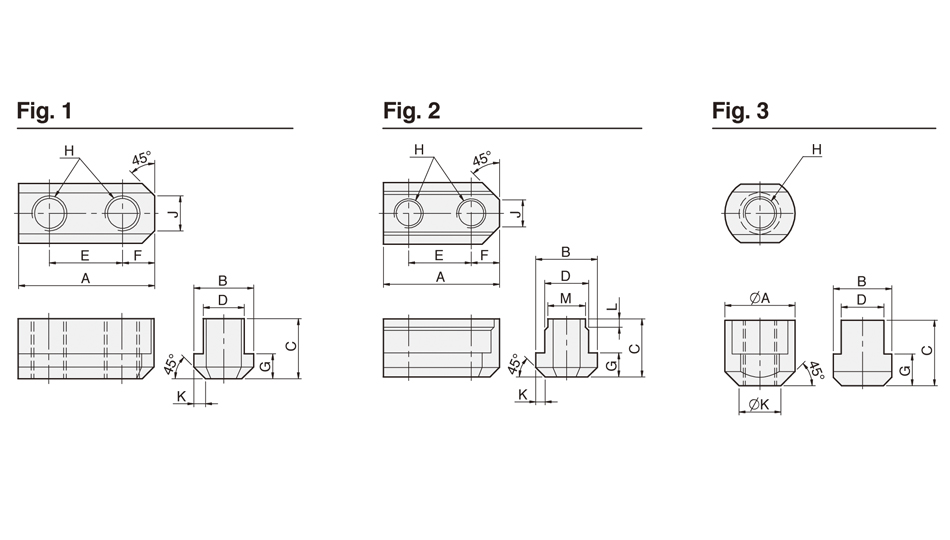

Drawings
Specifications
| DIM Model | A | B | C | D | E | F | G | H | J | K | L | M | Fig | Matching Chuck |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N-205 | 26 | 14.5 | 15 | 10 | 14 | 6 | 5.5 | M8 | 5 | 2 | - | - | 1 | N-204, N-205 |
| N-206 | 36 | 17.5 | 18.5 | 12 | 20 | 8.2 | 7.5 | M10 | 8 | 2.5 | - | - | 1 | N-206, NB-306 |
| N-208 | 46.5 | 20.5 | 20.5 | 14 | 25 | 10.5 | 8.5 | M12 | 12 | 4 | - | - | 1 | N-208, NB-208 |
| N-210 | 51 | 20.5 | 21.5 | 16 | 30 | 11 | 8.5 | M12 | 11 | 3 | - | - | 1 | N-210, NB-210 |
| N-212 | 55.5 | 29.5 | 27.8 | 21 | 30 | 12 | 11.5 | M16 | 13 | 4.5 | - | - | 1 | N-212, NB212 |
| N-215 | 80 | 33.5 | 45.5 | 24 | 43 | 17 | 16.5 | M20 | 11 | 5 | 8 | 22 | 2 | N-215, N-218 |
| V-206 | 36.5 | 17.5 | 22.5 | 12 | 20 | 7.5 | 7.5 | M10 | 6 | 3 | - | - | 1 | V-206, NHT-208 |
| V-208 | 48 | 20.5 | 25.5 | 14 | 25 | 11 | 9.5 | M12 | 8 | 4 | - | - | 1 | V-208 |
| V-210 | 55 | 22.5 | 25.5 | 16 | 30 | 11 | 9.5 | M12 | 8 | 4 | - | - | 1 | V-210 |
| V-212 | 55.5 | 26.5 | 33.5 | 18 | 30 | 11.5 | 13.5 | M14 | 12 | 5 | - | - | 1 | V-212 |
| V-215 | 42 | 35 | 39.2 | 25.5 | - | - | 19 | M20 | - | 25 | - | - | 3 | V-215, V-218 |
| V-215 26 M20 | 42 | 35 | 41.2 | 26 | - | - | 19 | M20 | - | 25 | - | - | 3 | V-215P3.0 |
| V-224 | 46 | 37.5 | 45 | 25 | - | - | 19 | M20 | - | 26.5 | - | - | 3 | N-220, N-224, V-221, V-224, V-232 |
