For clamping huge workpiece
Equipped with Protected cover on the gauge of chuck face, suitable for vertical lathe.
Independently moving master jaws for clamping huge irregular workpiece.
Made of FCD600
Suitable for vertical lathe.
Sliding surfaces, master jaws, and interior parts are hardening and grinding.
Thank you for visiting our website. Your personal privacy is absolutely respected and protected by the website. To help you understand how the website collects, uses and protects your personal information, be sure to read the websitePrivacy Policy. Thank you!
V(40＂,79＂)
Large wedge type non through-hole power chuck (adapter excluded)

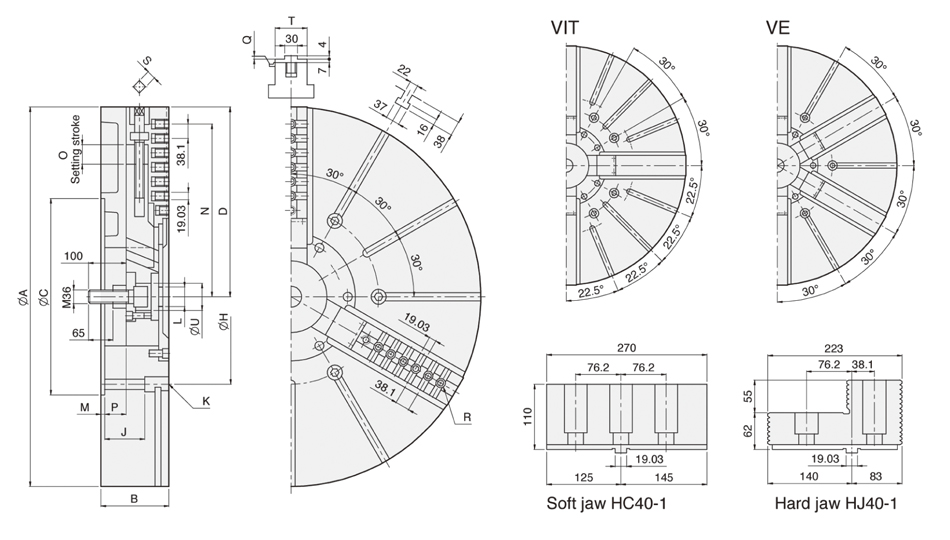

Drawings
Specifications
| SPEC Model | Jaws | Plunger Stroke (mm) | Radial Jaw Stroke +(Manual setting) (mm) | Max. Pull Force (kgf) | Max. Gripping Force (kgf) | Max. Operating Pressure (kgf / cm2) | Max. Speed (r.p.m.) | Weight (kg) | Moment Of Inertia I (kg‧m2 ) | Matching Cylinder | Matching Hard Jaw | Matching Soft Jaw | Gripping O.D. Range (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
