- Air chuck for external clamping with built-in pneumatic cylinder.
- Fast and clamping jaw stroke.
- Clamping pressure control.
- Clamping stroke control.
Thank you for visiting our website. Your personal privacy is absolutely respected and protected by the website. To help you understand how the website collects, uses and protects your personal information, be sure to read the websitePrivacy Policy. Thank you!
PB-ES
Pneumatic power chuck

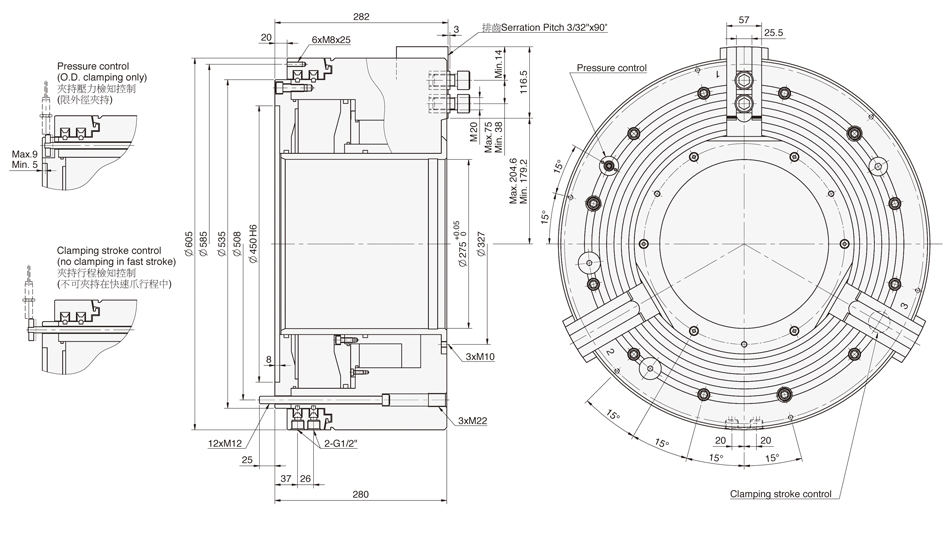

Drawings
Specifications
| SPEC Model | Through -Hole (mm) | Total Stroke / Jaw (mm) | Fast Stroke / Jaw (mm) | Clamping Stroke / Jaw (mm) | Piston Area (cm2) | Operating Pressure Min.-Max.(bar | Gripping* Force (KN.) | Max. Speed (r.p.m.) | Weight (kg) | Moment Of Inertia I (kg‧m2 ) | Air* Consumption (L) | Matching Hard Jaw | Matching Soft Jaw | Gripping O.D. Range (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 600-275 | 275 | 25.4 | 16.9 | 8.5 | 954 | 2-10 | 180 | 1100 | 360 | 20.6 | 39.5 | PB600 | PB600 | Ø135- Ø275 |
| 800-375 | 375 | 25.4 | 13.4 | 12 | 1342 | 2-10 | 250 | 750 | 980 | 110 | 68 | PB850 | PB850 | Ø115- Ø375 |
