- Suitable for easy one step cutting of thin hores, plate and outside diameter.
Thank you for visiting our website. Your personal privacy is absolutely respected and protected by the website. To help you understand how the website collects, uses and protects your personal information, be sure to read the websitePrivacy Policy. Thank you!
P165
Floating plate center chuck

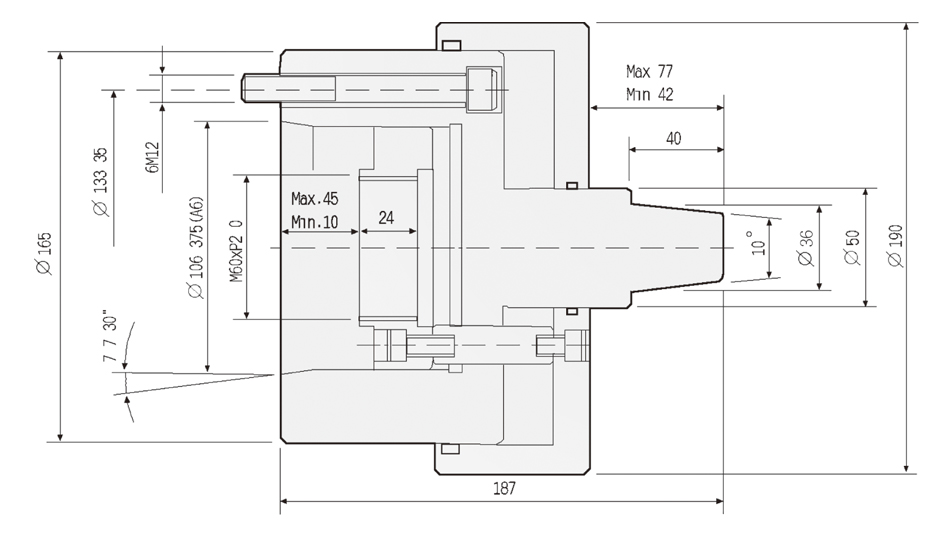

Drawings
Specifications
| SPEC Model | Plunger Stroke (mm) | Max. Operating Pressure MPa(kgf/cm2) | Max. Speed (r.p.m.) | Weight (kg) | Moment Of Inertia I (kg‧m2 ) | Matching Cylinder |
|---|---|---|---|---|---|---|
| P165 | 35 | 1.0(10) | 6000 | 18.5 | 0.02 | MS125C35 |
